EEG electrodes

Ag/AgCl electrodes for non-invasive recording of EEG and tDCs/tACs, ear electrodes and clamps, repair kits

OVERVIEW

Reusable passive electrodes MCScap are based on high-quality Ag/AgCl and Ag/AgCl sintered sensors which guarantee:

a high quality signal,
a long-term stable electrical contact,
a low noise reference electrode,

a minimum electrode polarization,
an excellent low frequency response.

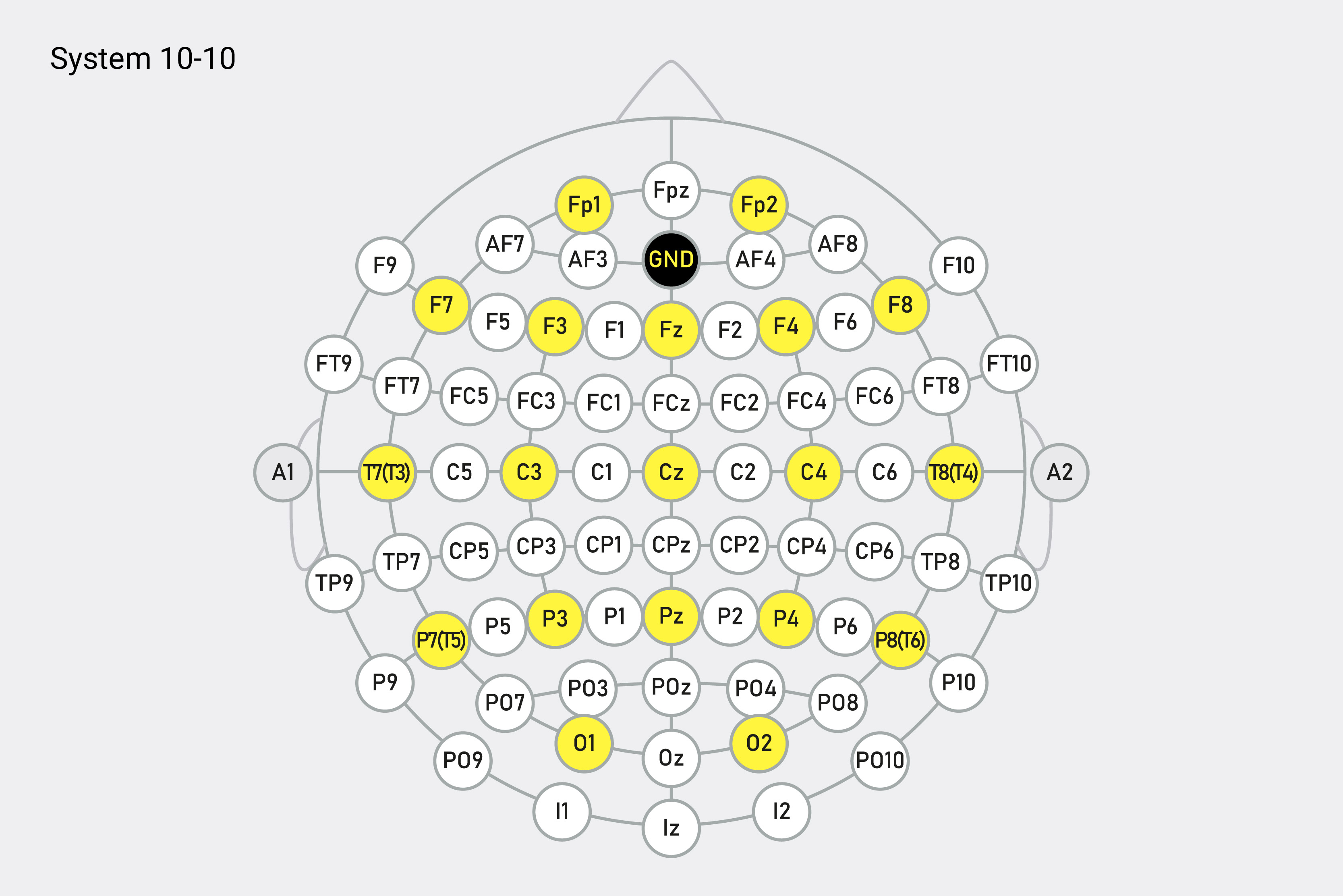

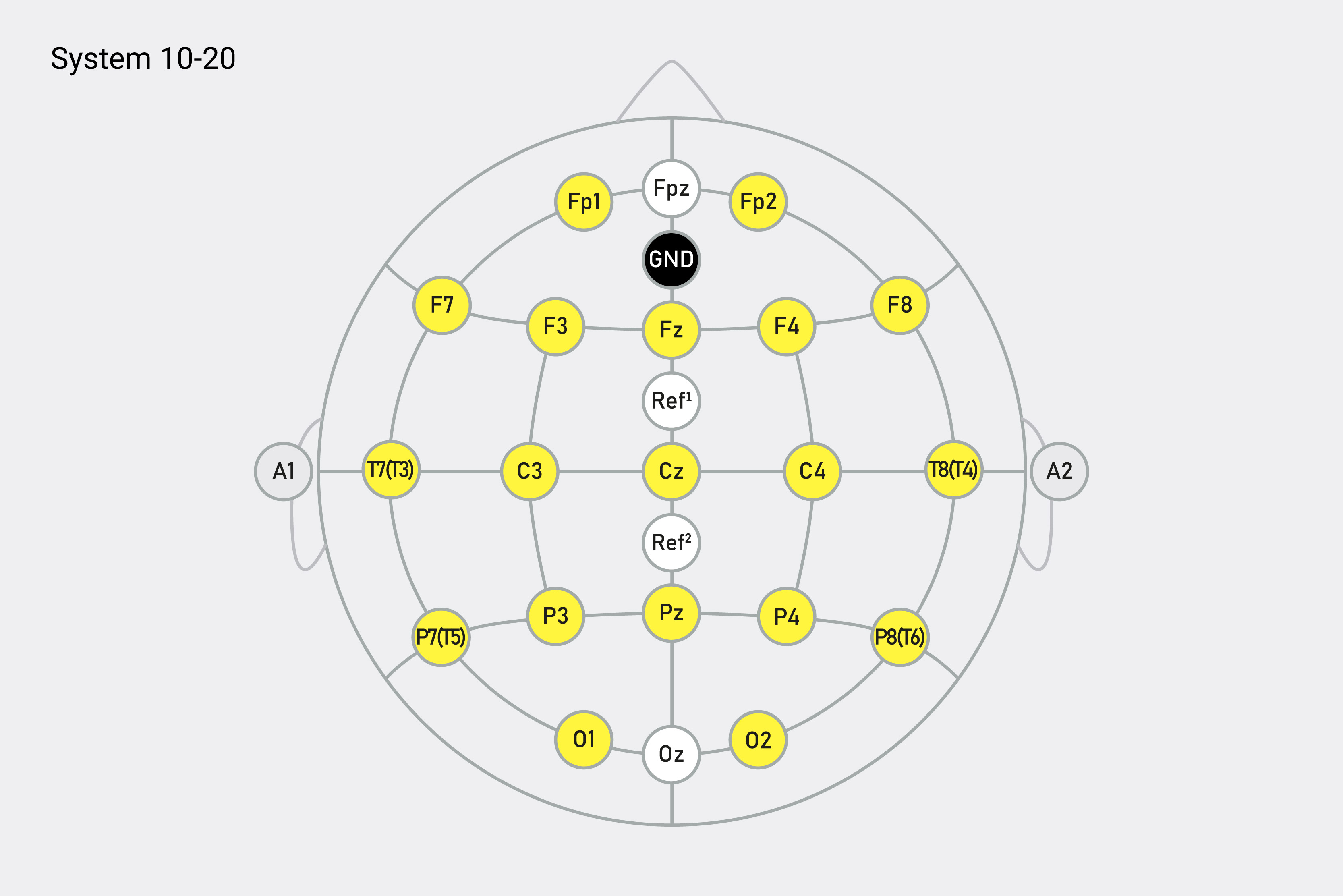

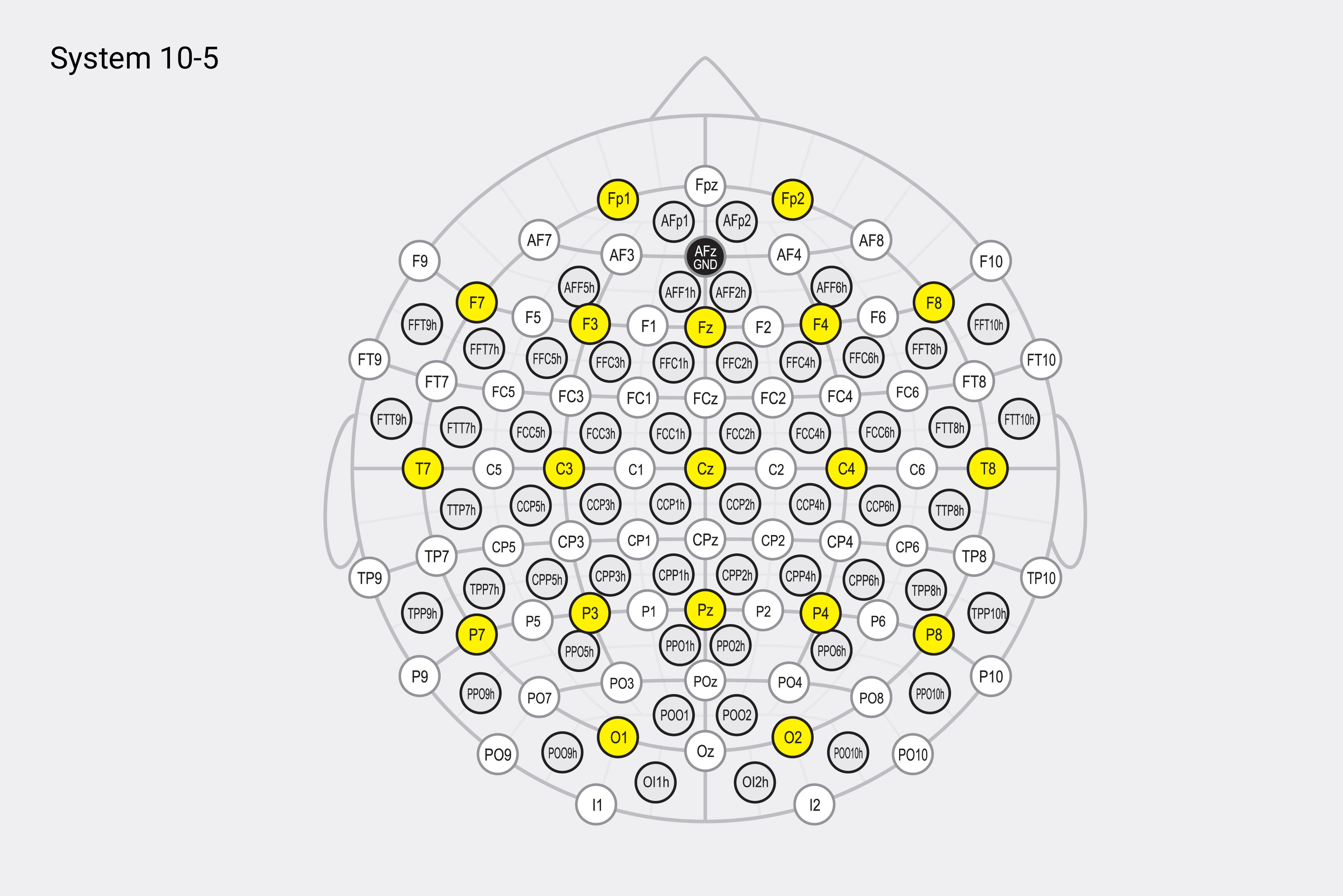

All MCScap electrodes can be integrated into textile cap MCScap. Electrodes can have TouchProof connectors or can be preinstalled in the Electrode cap with common connector. All electrodes have special holes for conductive gel.

EEG ELECTRODES

MCScap-E

Point Ag/AgCl sintered electrode for EEG recording with TouchProof 1.5 mm connector, cable length 1.2 m.

MCScap-T

Thin cup Ag/AgCl sintered electrode for EEG recording with TouchProof 1.5 mm connector, cable length 1.2 m.

MCScap-NTС

Cup with skirt Ag/AgCl sintered electrode for EEG recording with TouchProof 1.5 mm connector, cable length 1.2 m.

MCScap-C

Cup with skirt Ag/AgCl electrode for EEG recording with TouchProof 1.5 mm connector, cable length 1.2 m.

MCScap-NT

Cup Ag/AgCl sintered electrode for EEG recording with TouchProof 1.5 mm connector, cable length 1.2 m.

MCScap-TC

Cup Ag/AgCl electrode for EEG recording with TouchProof 1.5 mm connector, cable length 1.2 m.

MCScap-StNT

Cup Ag/AgCl sintered electrode for EEG recording, compatible with silicone tubular cap, TouchProof 1.5 mm connector, cable length 1.2 m.

MCScap-StTC

Cup Ag/AgCl electrode for EEG recording, compatible with silicone tubular cap, TouchProof 1.5 mm connector, cable length 1.0 м.

MCScap-NTH

Hight cup Ag/AgCl sintered electrode for EEG recording with TouchProof 1.5 mm connector, cable length 1.2 m.

MCScap-T-HD

Hight cup Ag/AgCl sintered electrode for EEG recording with TouchProof 1.5 mm connector, cable length 1.2 m

SPECIFICATION

download


	MCScap‑E electrode	MCScap‑T electrode	MCScap‑NTC electrode	MCScap‑C electrode	MCScap‑NTH electrode	MCScap‑NT electrode	MCScap‑TC electrode	MCScap‑StTC electrode	MCScap‑StNT electrode
Material of electrode conductive surface	Ag/AgCl sintered	Ag/AgCl sintered	Ag/AgCl sintered	Ag/AgCl	Ag/AgCl sintered	Ag/AgCl sintered	Ag/AgCl	Ag/AgCl	Ag/AgCl sintered
Electrode body material	polyurethane	polyurethane	polyurethane	polyurethane	polyurethane	polyurethane	polyurethane	polyurethane	polyurethane
Square of electrode conductive surface	4 mm2	7 mm2	26 mm2	26 mm2	26 mm2	26 mm2	26 mm2	26 mm2	26 mm2
Internal diameter of the electrode at the point of contact of the electrode contact substance with the skin	8 mm	6 mm	10 mm	10 mm	7 mm	8 mm	8 mm	8 mm	8 mm
Surface area of contact of the electrode substance with the skin	50.2 mm2	28.3 mm2	78.5 mm2	78.5 mm2	38.5 mm2	50.2 mm2	50.2 mm2	50.2 mm2	50.2 mm2
Outer diameter of the electrode at the point of contact with the skin	15.8 mm	11.5 mm	15 mm	15 mm	11.4 mm	11.9 mm	11.9 mm	11.9 mm	11.9 mm
Distance from the skin to the electrode conductive surface	0.7 mm	1.6 mm	3.2 mm	3.5 mm	3.7 mm	1.1 mm	1.1 mm	1.1 mm	1.1 mm
The diameter of the hole in the electrode to add gel	2.8 mm	2.8 mm	2.8 mm	2.8 mm	2.8 mm	2.8 mm	2.8 mm	2.8 mm	2.8 mm
Electrode polarization	≤ 50 mV	≤ 50 mV	≤ 50 mV	≤ 50 mV	≤ 50 mV	≤ 50 mV	≤ 50 mV	≤ 50 mV	≤ 50 mV
Resistance of electrodes insulation	≥ 1000 MΩ	≥ 1000 MΩ	≥ 1000 MΩ	≥ 1000 MΩ	≥ 1000 MΩ	≥ 1000 MΩ	≥ 1000 MΩ	≥ 1000 MΩ	≥ 1000 MΩ
Dielectric strength of electrodes insulation	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V
The impedance of the electrode	≤ 5 kΩ	≤ 5 kΩ	≤ 5 kΩ	≤ 5 kΩ	≤ 5 kΩ	≤ 5 kΩ	≤ 5 kΩ	≤ 5 kΩ	≤ 5 kΩ
Electrode cable length	1.2 ±0.05 m	1.2 ±0.05 m	1.2 ±0.05 m	1.2 ±0.05 m	1.2 ±0.05 m	1.2 ±0.05 m	1.2 ±0.05 m	1.0 ±0.05 m	1.2 ±0.05 m
Connector type	TouchProof 1.5 mm (DIN 42 802‑ST)	TouchProof 1.5 mm (DIN 42 802‑ST)	TouchProof 1.5 mm (DIN 42 802‑ST)	TouchProof 1.5 mm (DIN 42 802‑ST)	TouchProof 1.5 mm (DIN 42 802‑ST)	TouchProof 1.5 mm (DIN 42 802‑ST)	TouchProof 1.5 mm (DIN 42 802‑ST)	TouchProof 1.5 mm (DIN 42 802‑ST)	TouchProof 1.5 mm (DIN 42 802‑ST)
Use with MCScap® textile caps	yes, with fixing rings	yes, fixing directly in the holes of the cap	yes, fixing directly in the holes of the cap	yes, fixing directly in the holes of the cap	yes, fixing directly in the holes of the cap	yes, fixing directly in the holes of the cap	yes, fixing directly in the holes of the cap	yes, fixing directly in the holes of the cap	yes, fixing directly in the holes of the cap
Net weight	< 7 g	< 4 g	< 4 g	< 4 g	< 5 g	< 4 g	< 4 g	< 4 g	< 4 g
Use with tubular caps	-	-	-	-	-	-	-	yes	yes
