DEC NET

OVERVIEW

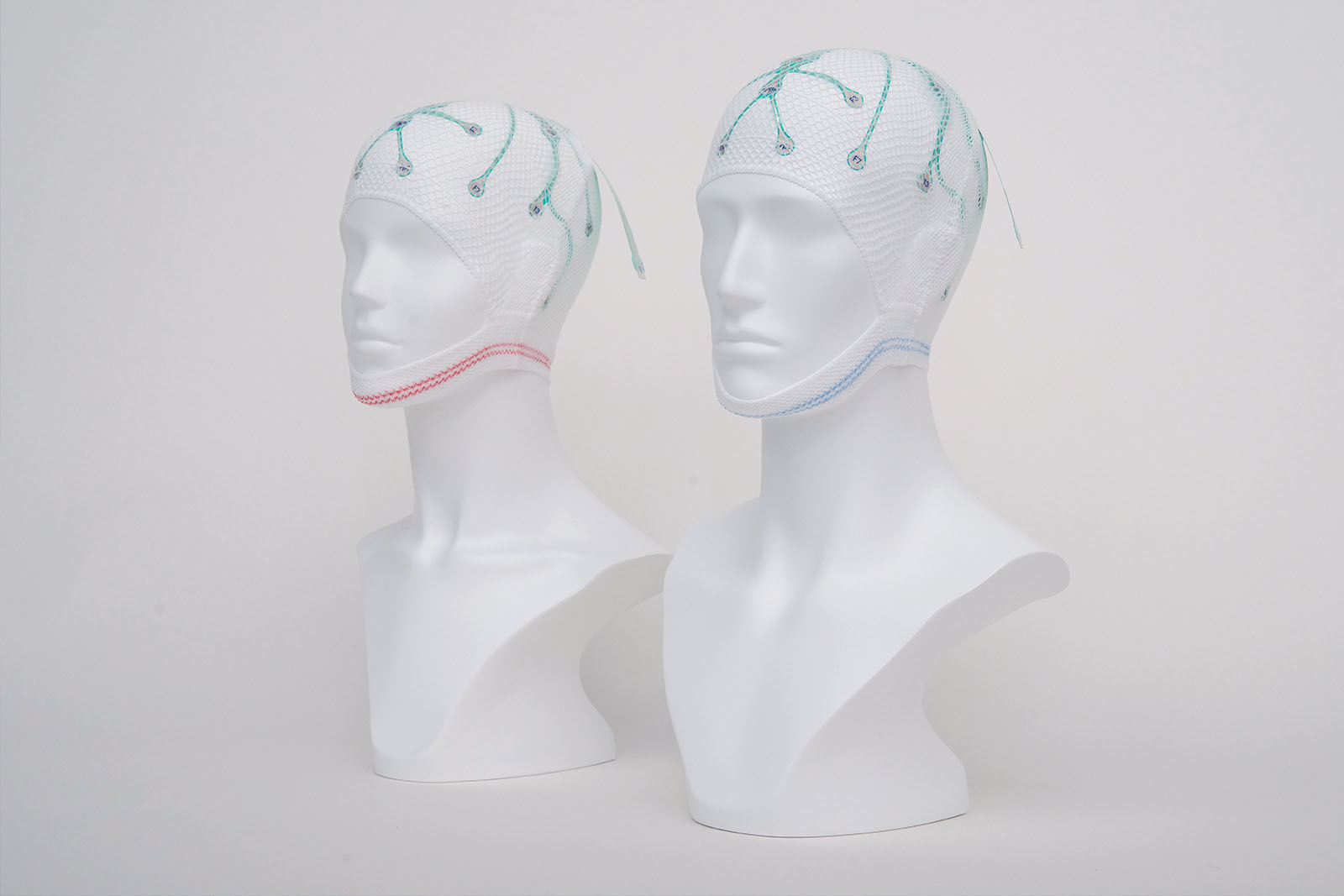

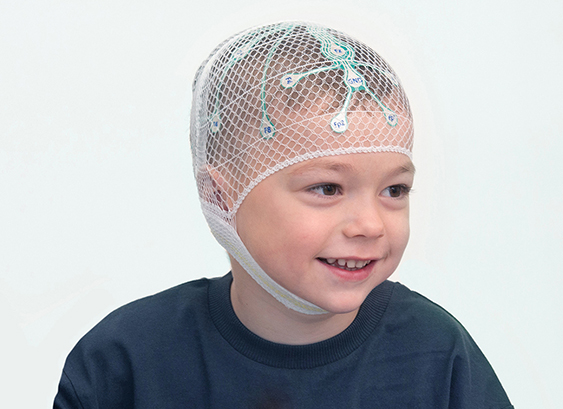

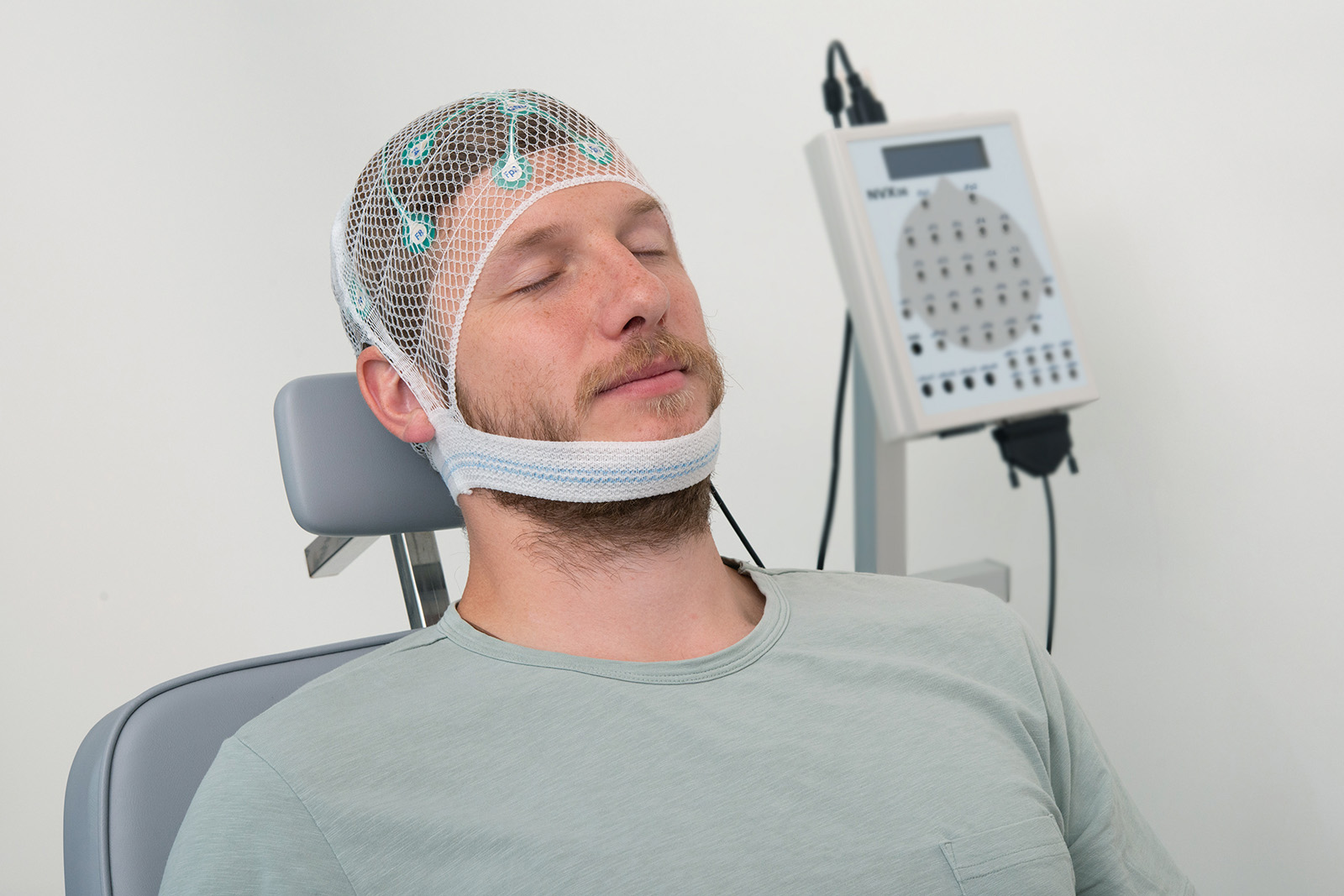

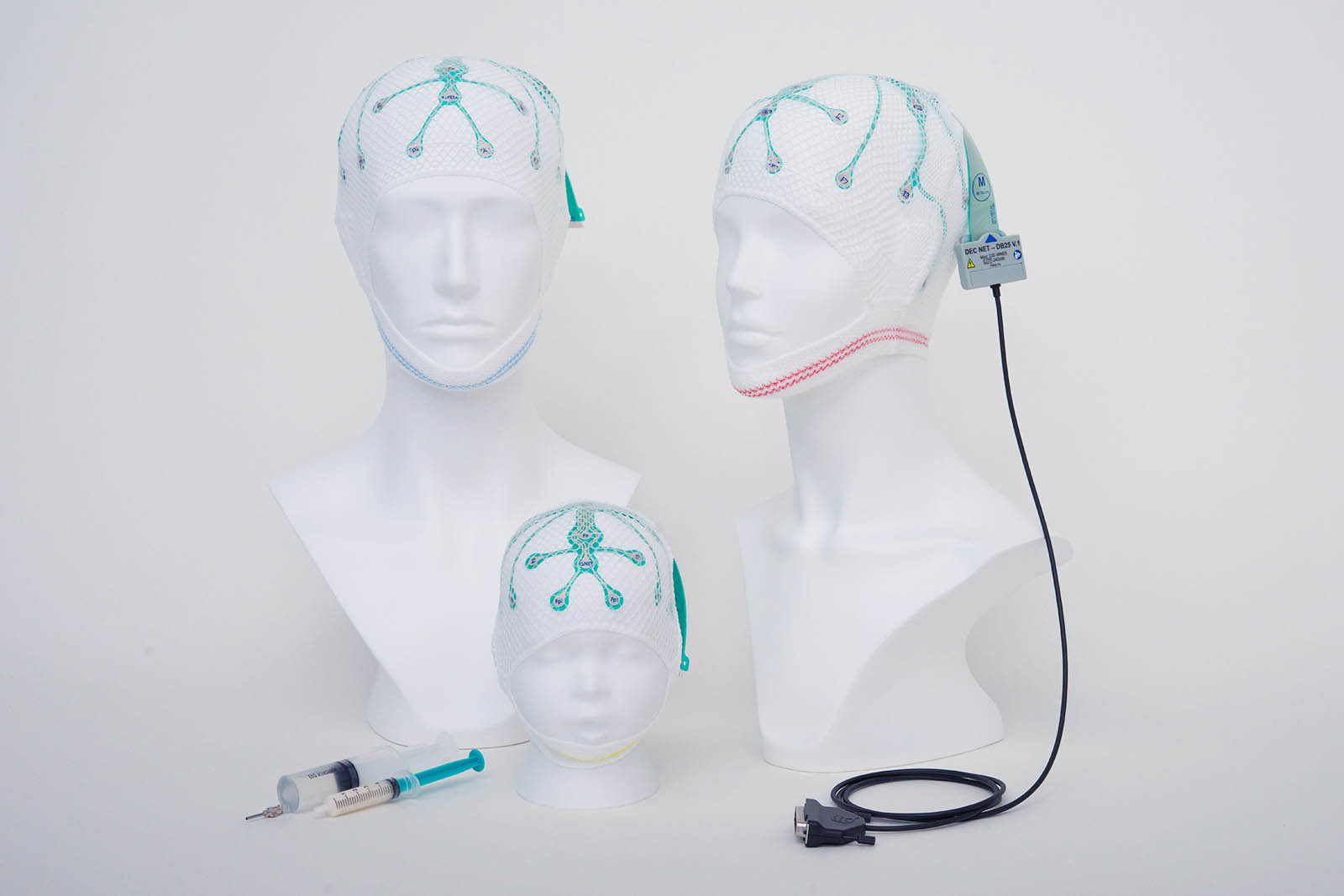

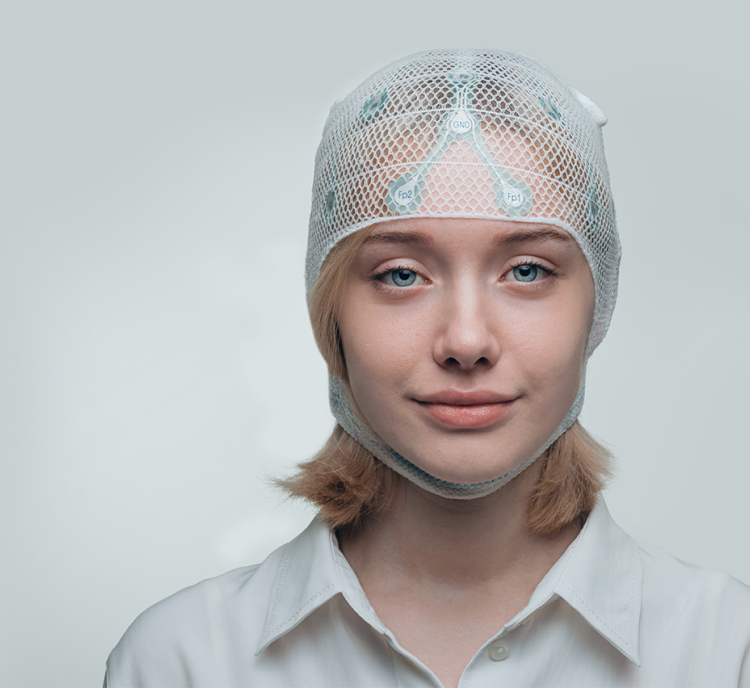

Disposable EEG electrode cap DEC NET is designed for non-invasive recording of electroencephalogram (EEG) during the investigation and diagnosis of various neurological conditions, mental disorders, and brain lesions.

The caps are used in the fields of neurology, clinical neurophysiology, epileptology, somnology, psychiatry, neonatal EEG, and emergency EEG.



Advantages of DEC NET:

  • Ag/AgCl electrodes provide high-quality stable signal,
  • 23 electrodes pre-installed according to the international 10-20 system,
  • single-use product - 100% solution to cross-contamination problems,
  • saves medical staff time on cleaning, drying and disinfecting,
  • simple and quick mounting - less than 5 minutes,
  • lightweight and comfortable for patients,
  • suitable for long-term EEG monitoring.

SPECIFICATION

Number of EEG electrodes 23
Electrode positions Fp1, Fp2, F3, F4, F7, F8, Fz, Cz, C3, C4, Pz, T3, T4, P3, P4, A1, A2, T5, T6, O1, O2, GND(@AFz), REF(@CPz)
Electrode polarization < 15 mV
Electrode noise < 2 uV p-p in the passband of 1 Hz to 75 Hz
Electrode impedance less 1 kOhm in the passband of 0.15 Hz to 75 Hz
Material of electrode conductive surface Ag/AgCl
Diameter of the sensor surface 10 mm
Sterility non sterile

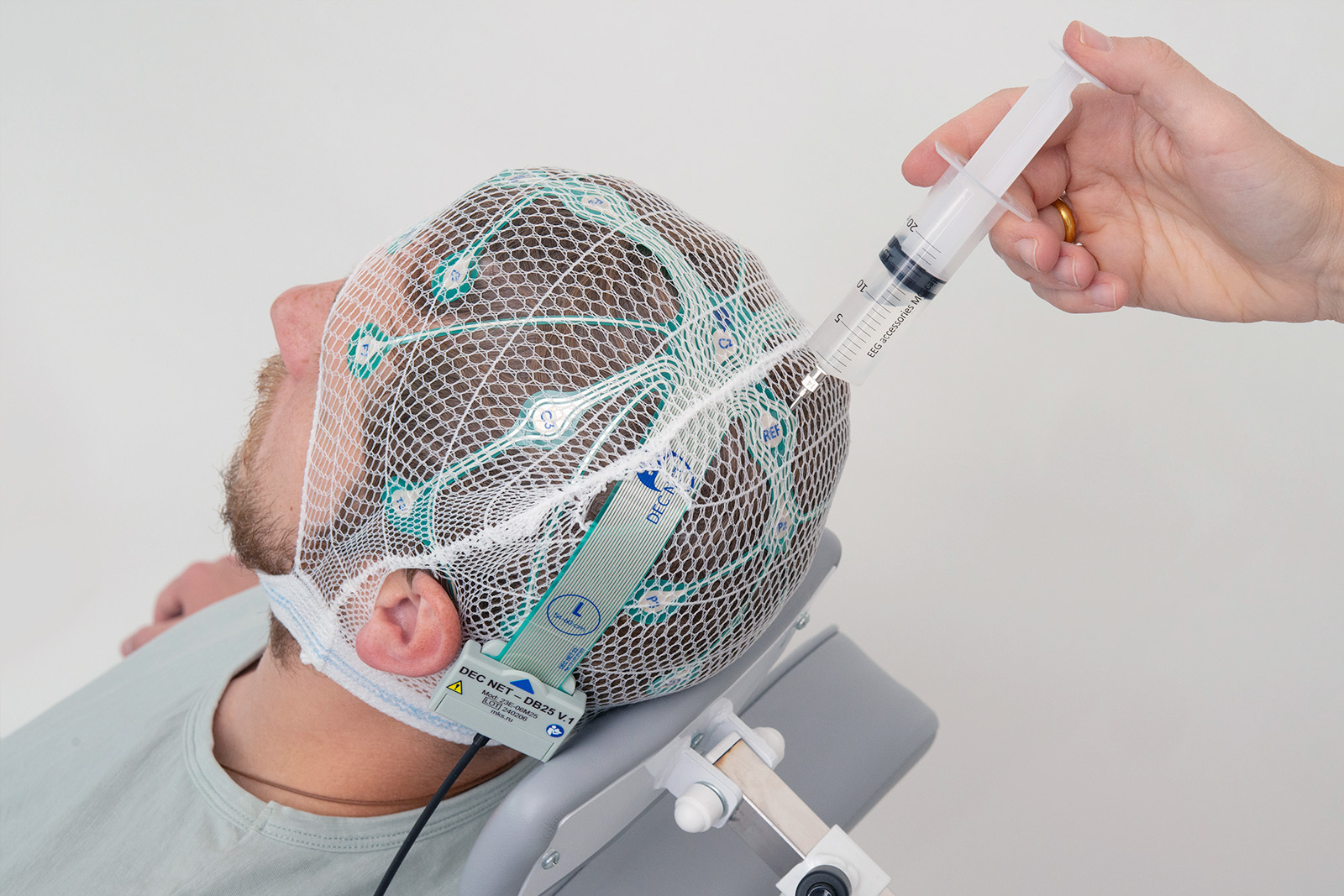

Electrode condition without gel, need to add EEG conductive gel or paste by self
Avaliable sizes L (54 – 60 cm), M (48 - 54 cm), S (42 - 48 cm)
Set up time 3-5 minutes
Work duration after the package opening up to 72 hours
Storage of the opened package 1 mounth

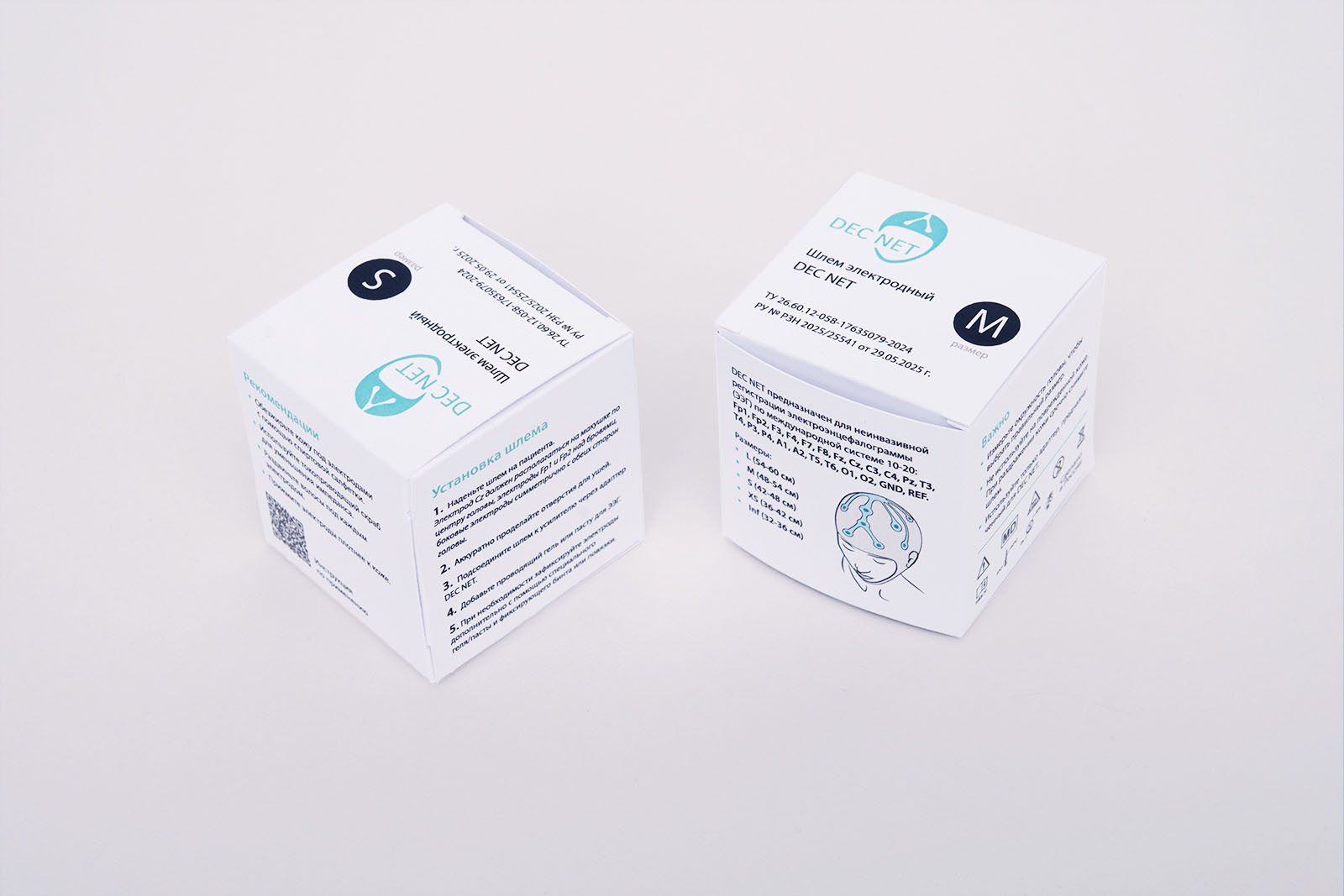

Amount in a package 1 pc.
Net weight 10 ± 1 g

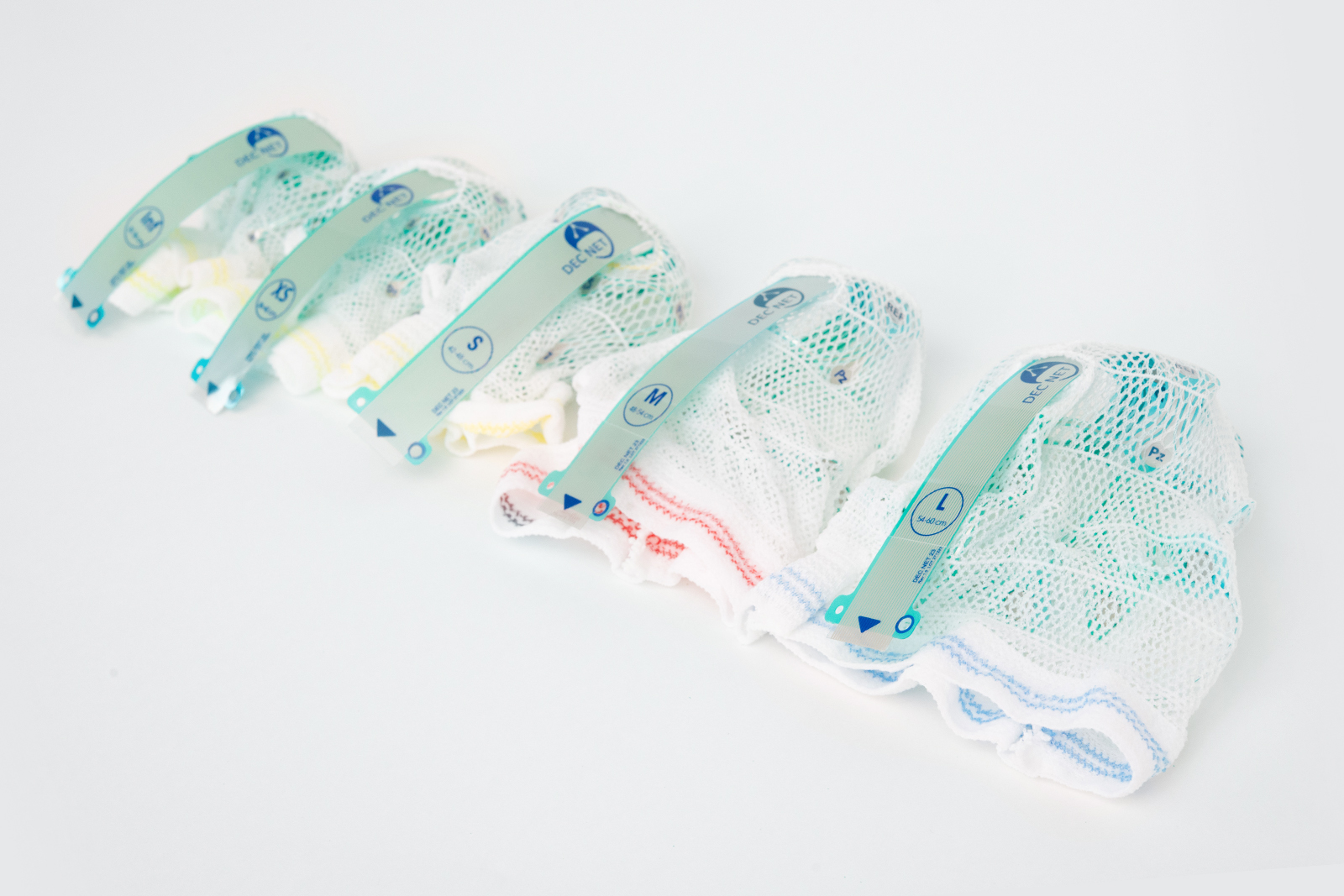

Size:

  • L (54-60 cm) – Adults,

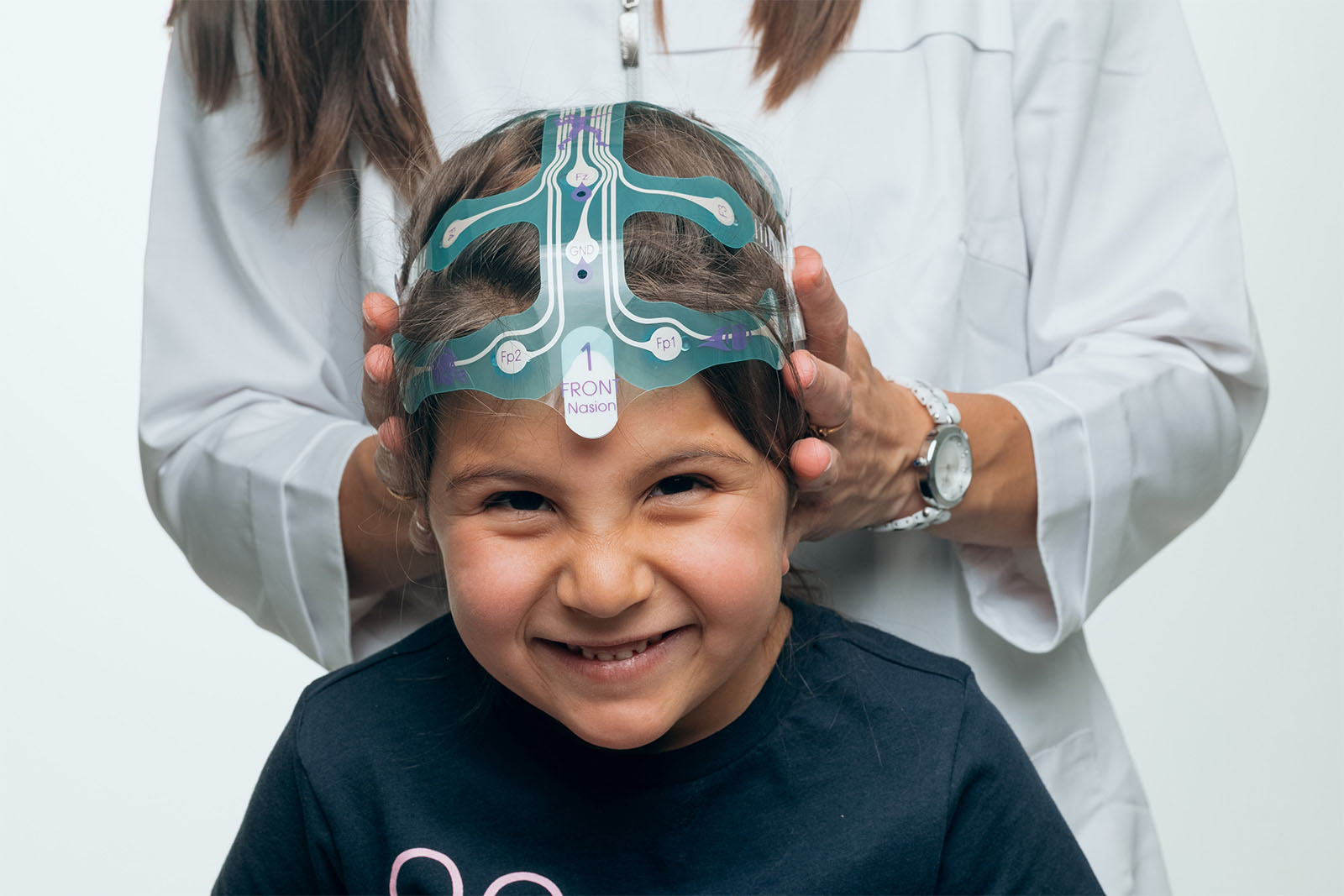

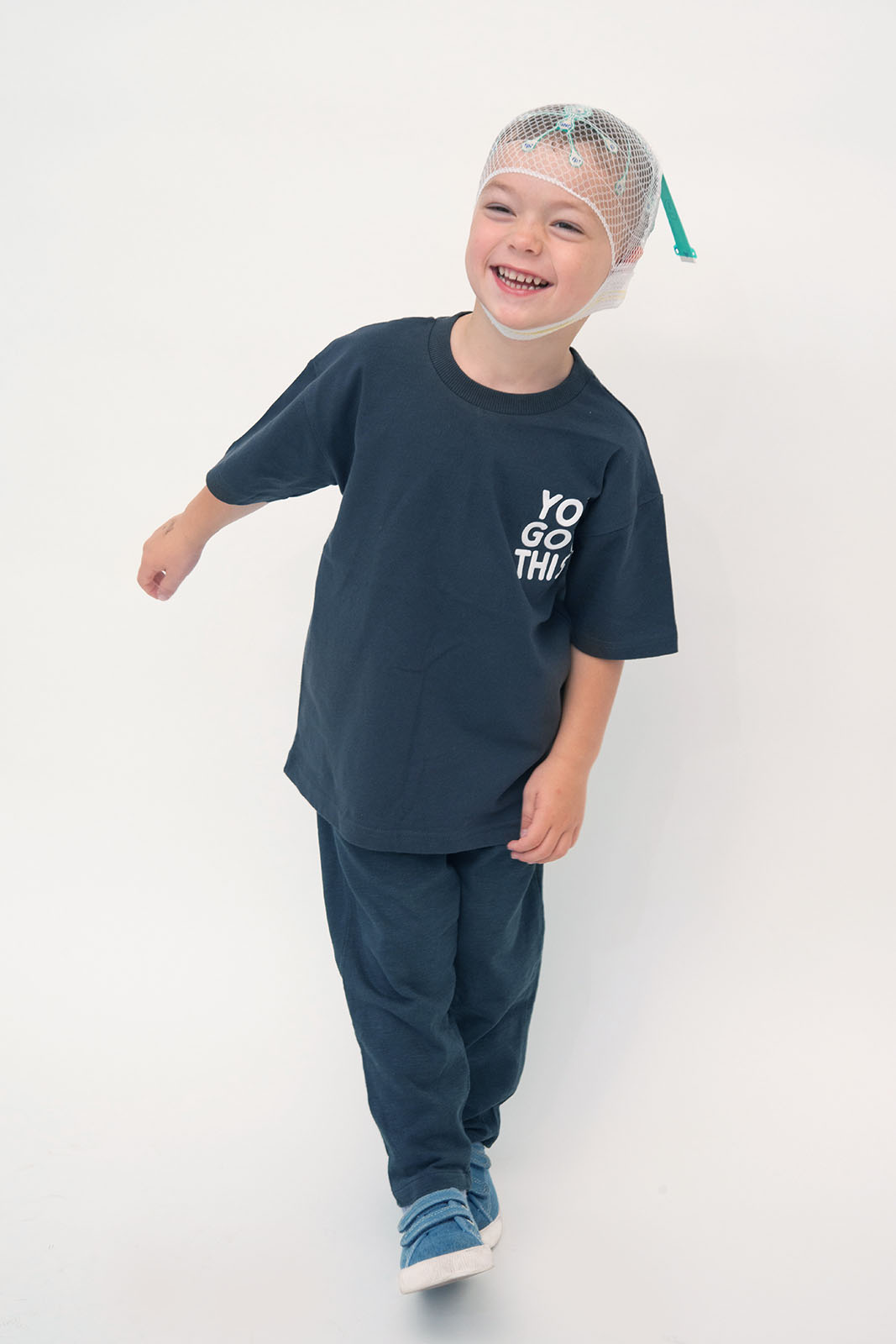

  • M (48-54 cm) – Children, Teenagers,

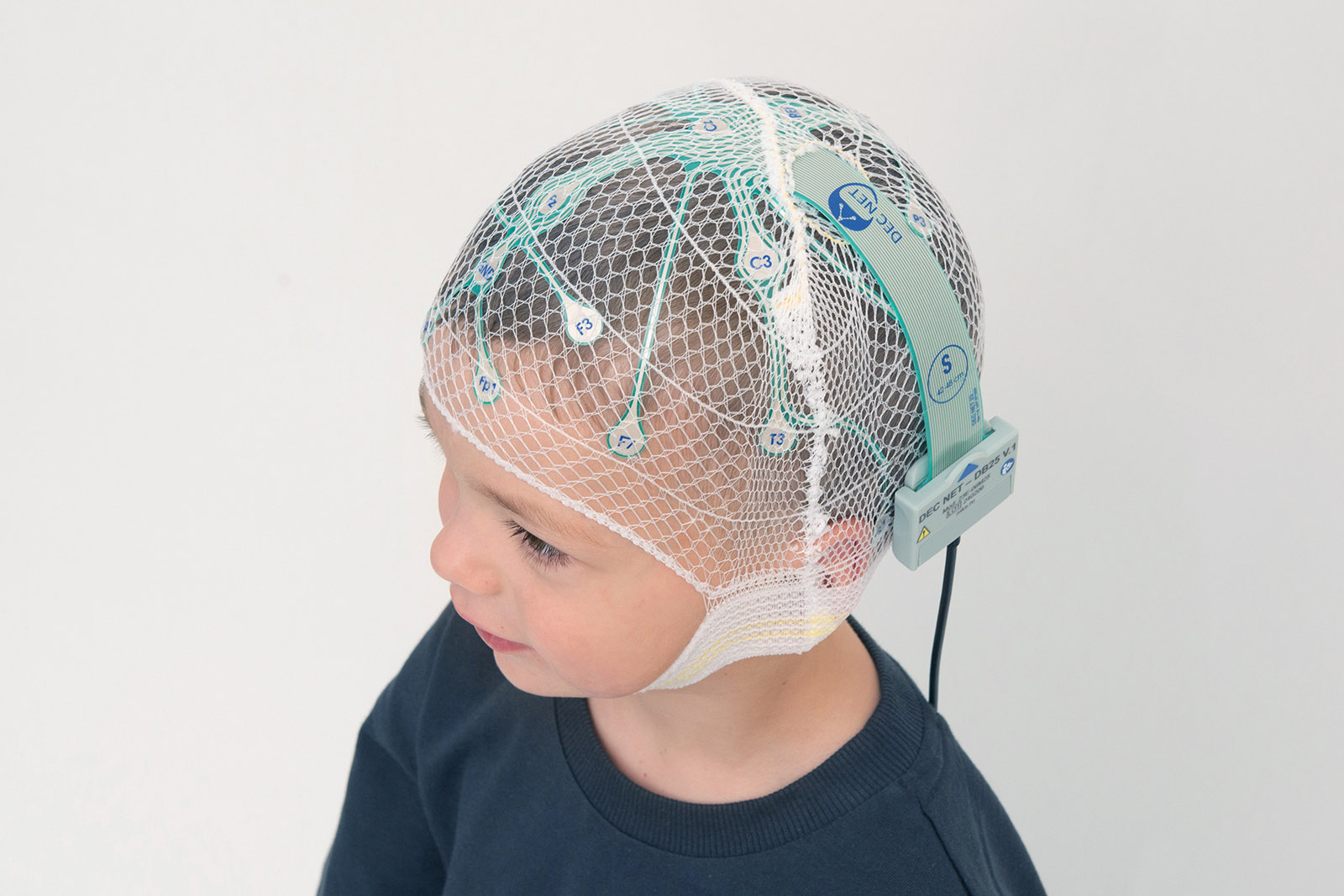

  • S (42-48 cm) – Children under 2 years,

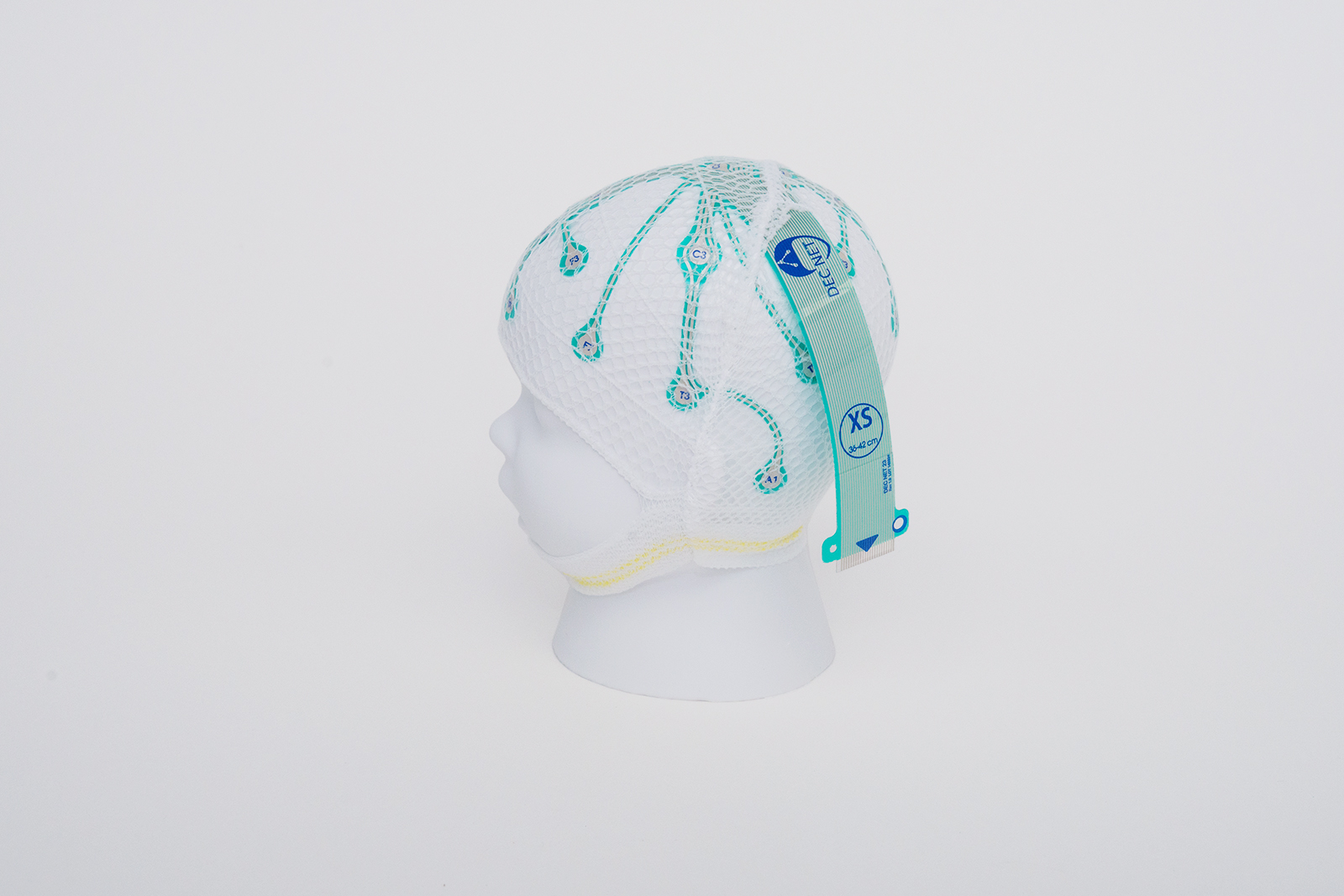

  • XS (36-42 cm) – Infants under 4 months,
  • Inf (32-36 cm) – Newborns under 1 month.

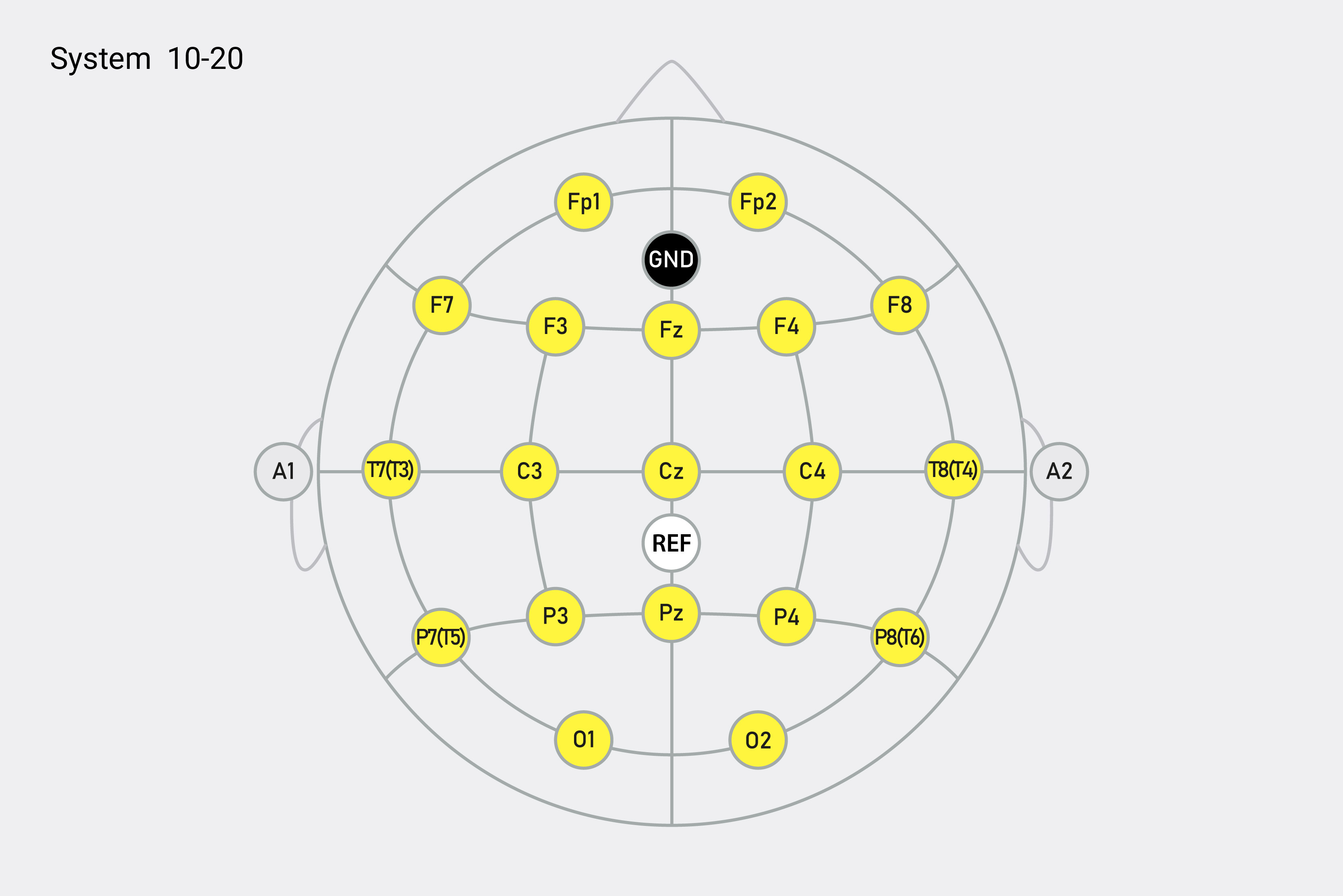

SCHEME

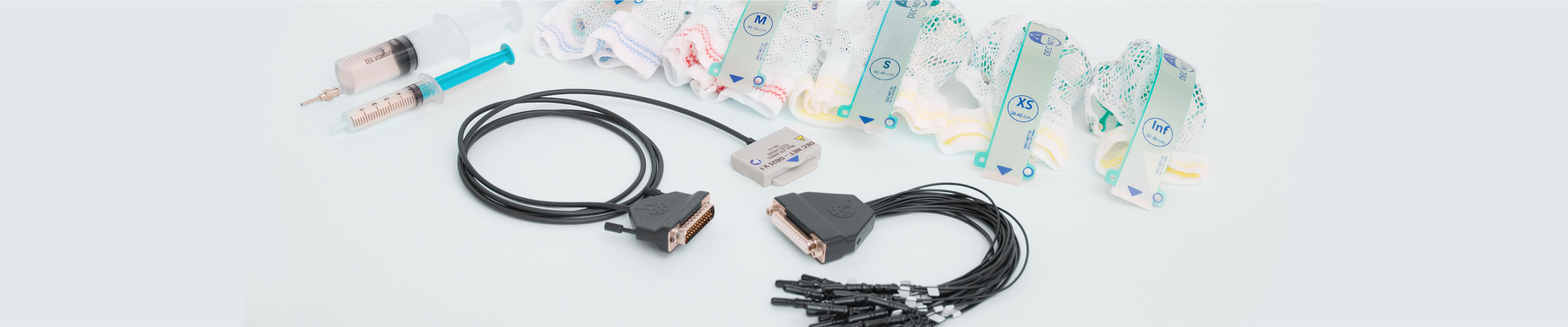

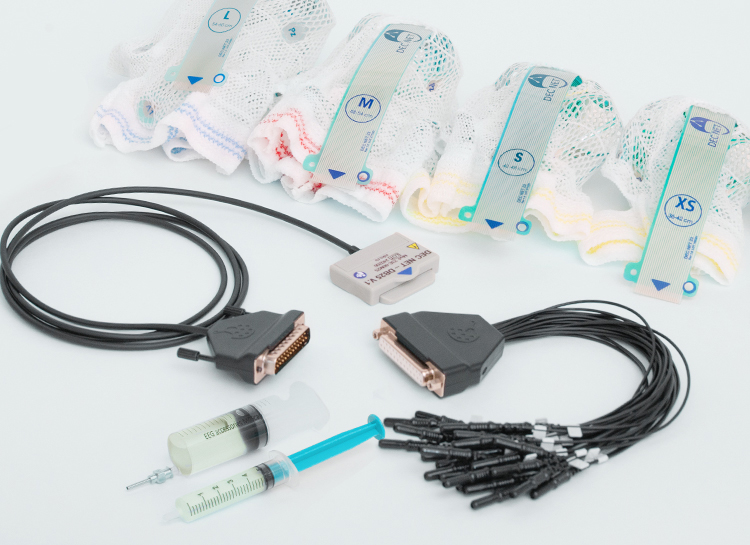

ACCESSORIES

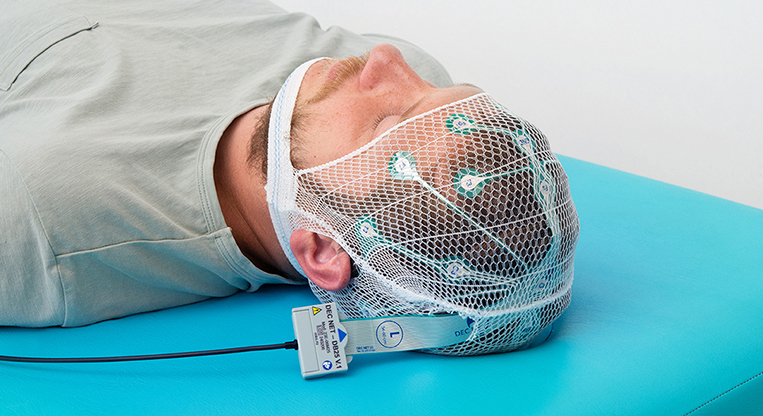

The DEC NET cap connects to an EEG amplifier through specialized reusable adapters.

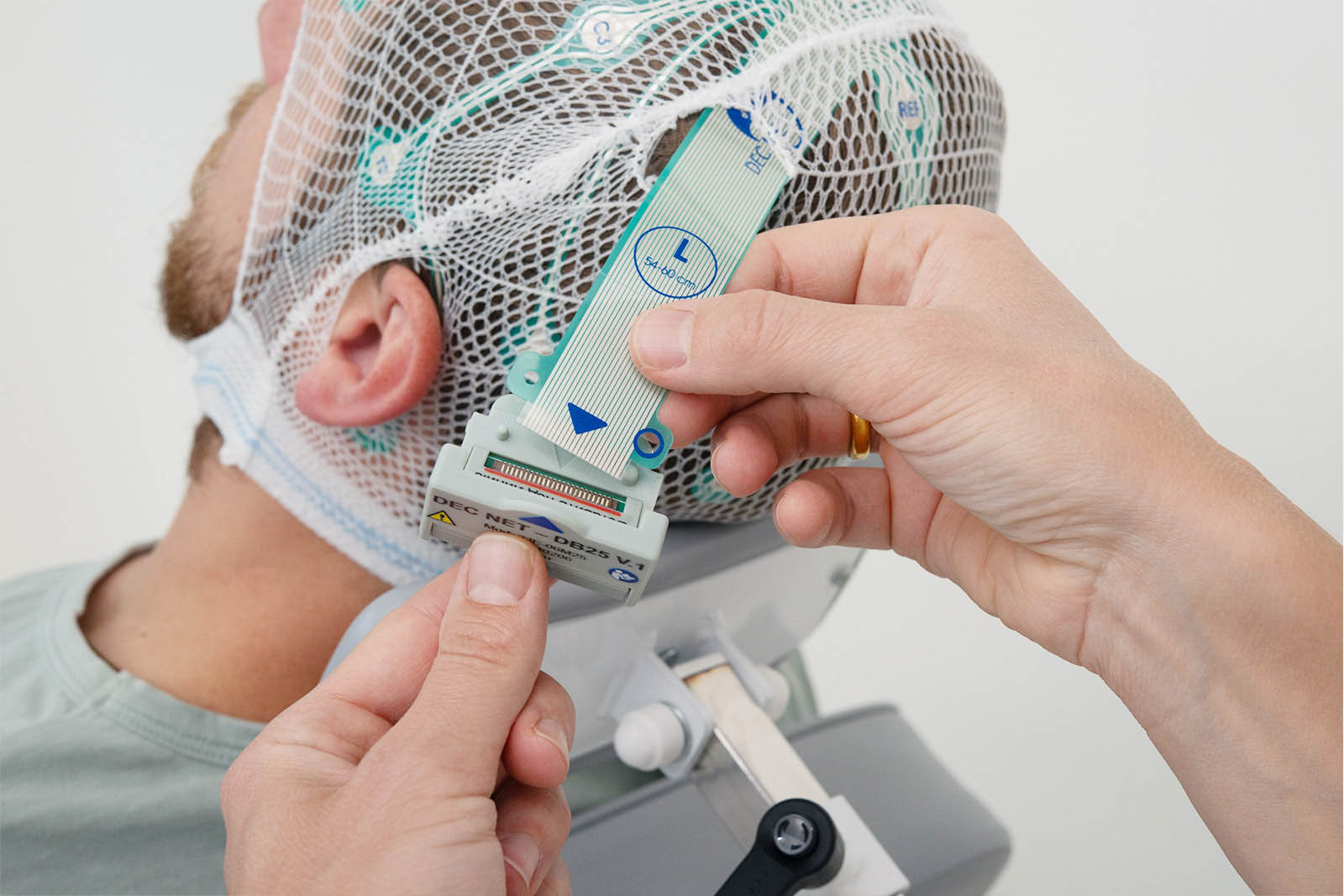

DEC NET 23-DB25 is required main adapter. This adapter connects cap DEC NET to an EEG amplifier via a standard DB25 connector.

TP2DB25F-DEC23 is additional adapter. This adapter connects an EEG cap with a common connector DB25 to any EEG amplifier through TouchProof 1.5mm connectors. This adapter does not connect directly to the DEC NET cap, it connects to the common conector of the main adapter DEC NET 23-DB25.


Custom orders

Various modifications of disposable EEG caps and adapters can be designed and manufactured by order, according to specific customer needs or requirements.
The cap design, number of electrodes, adapter connector type and other parameters may vary.

For example - a disposable cap with pre-applied gel DEC pre-gelled or a disposable cap with reduced number of electrodes for infants DEC infant.

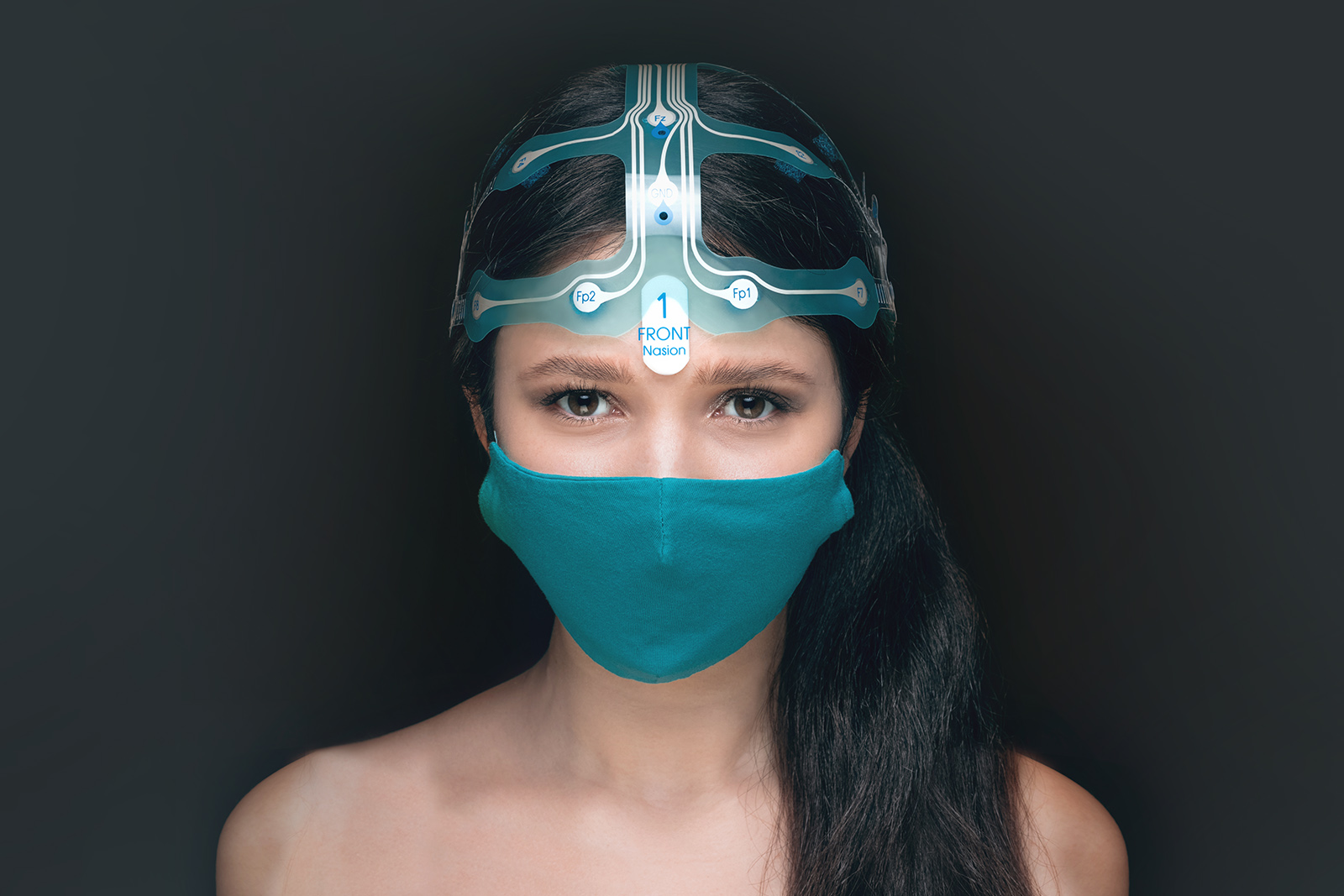

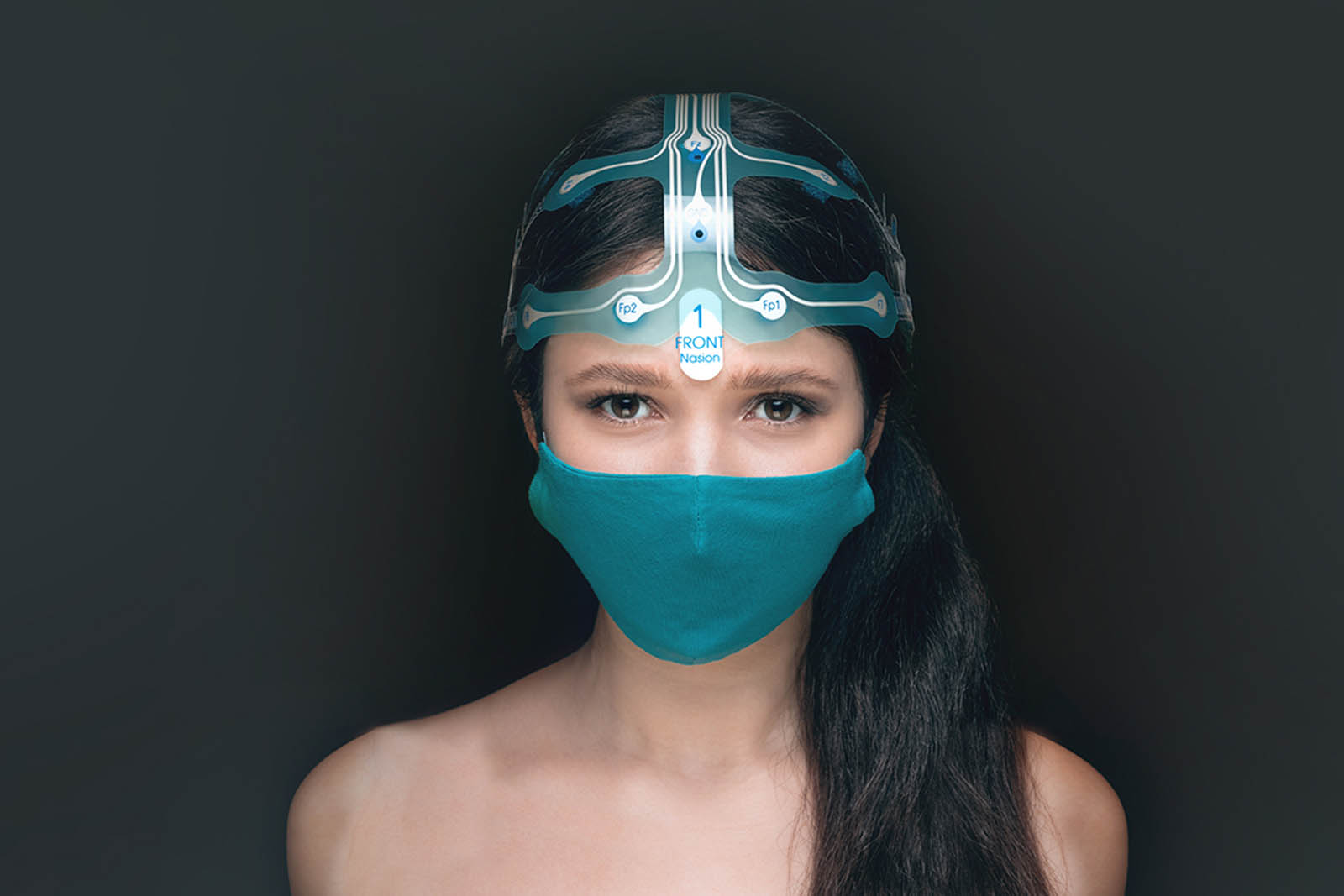

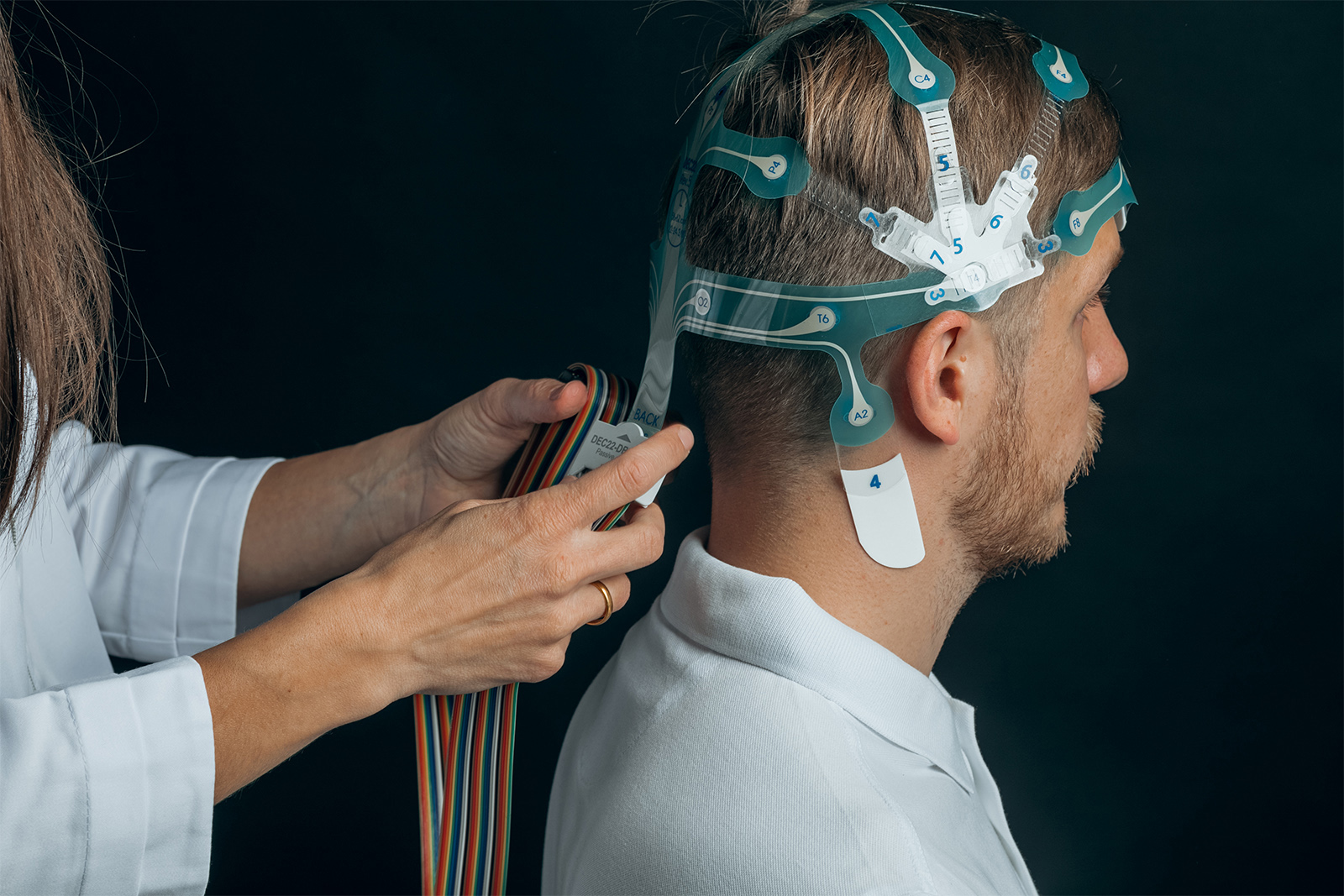

DEC pre-gelled

A fully ready-to-use EEG cap with pre-applied conductive gel on electrodes

Look video about DEC pre-gelled

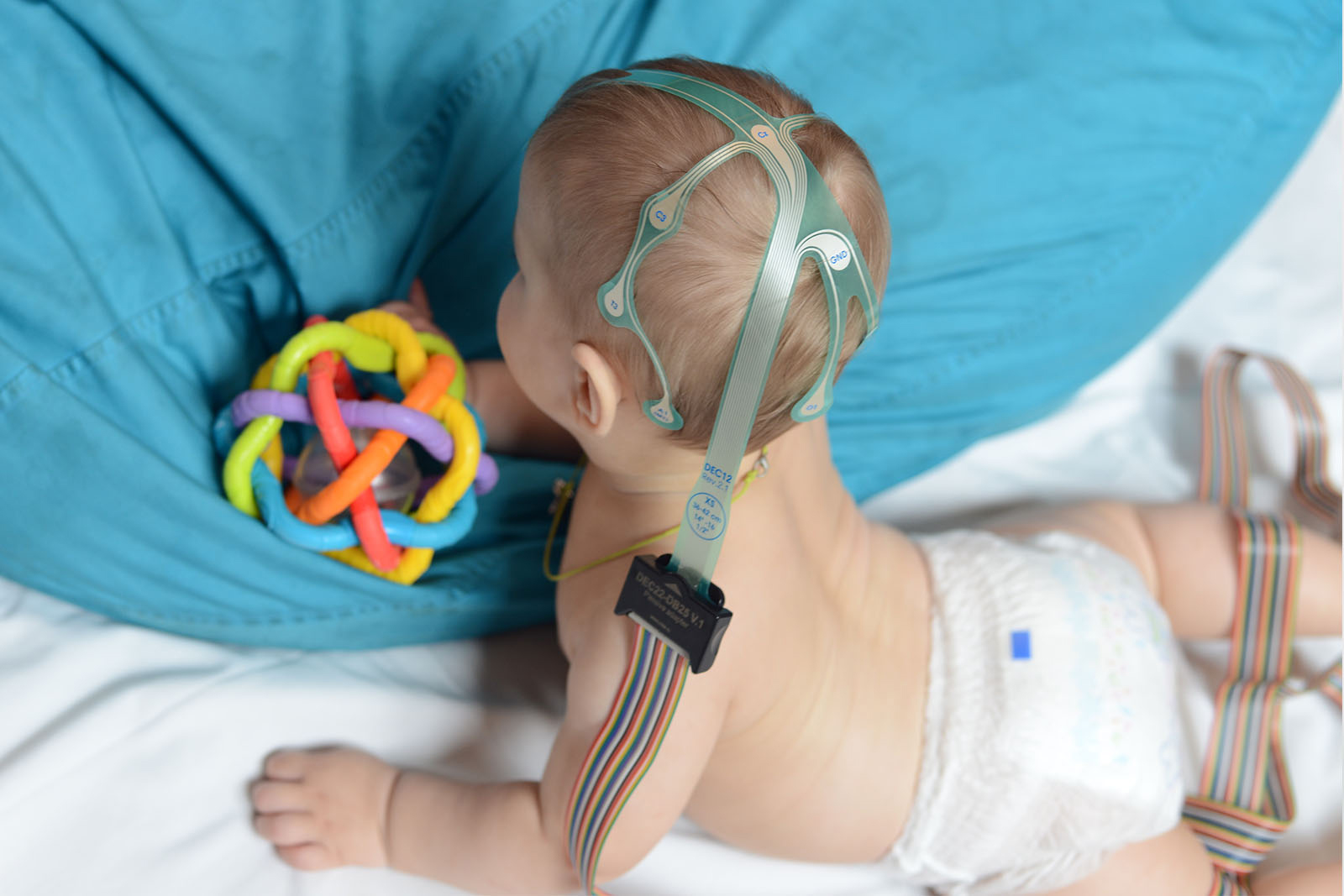

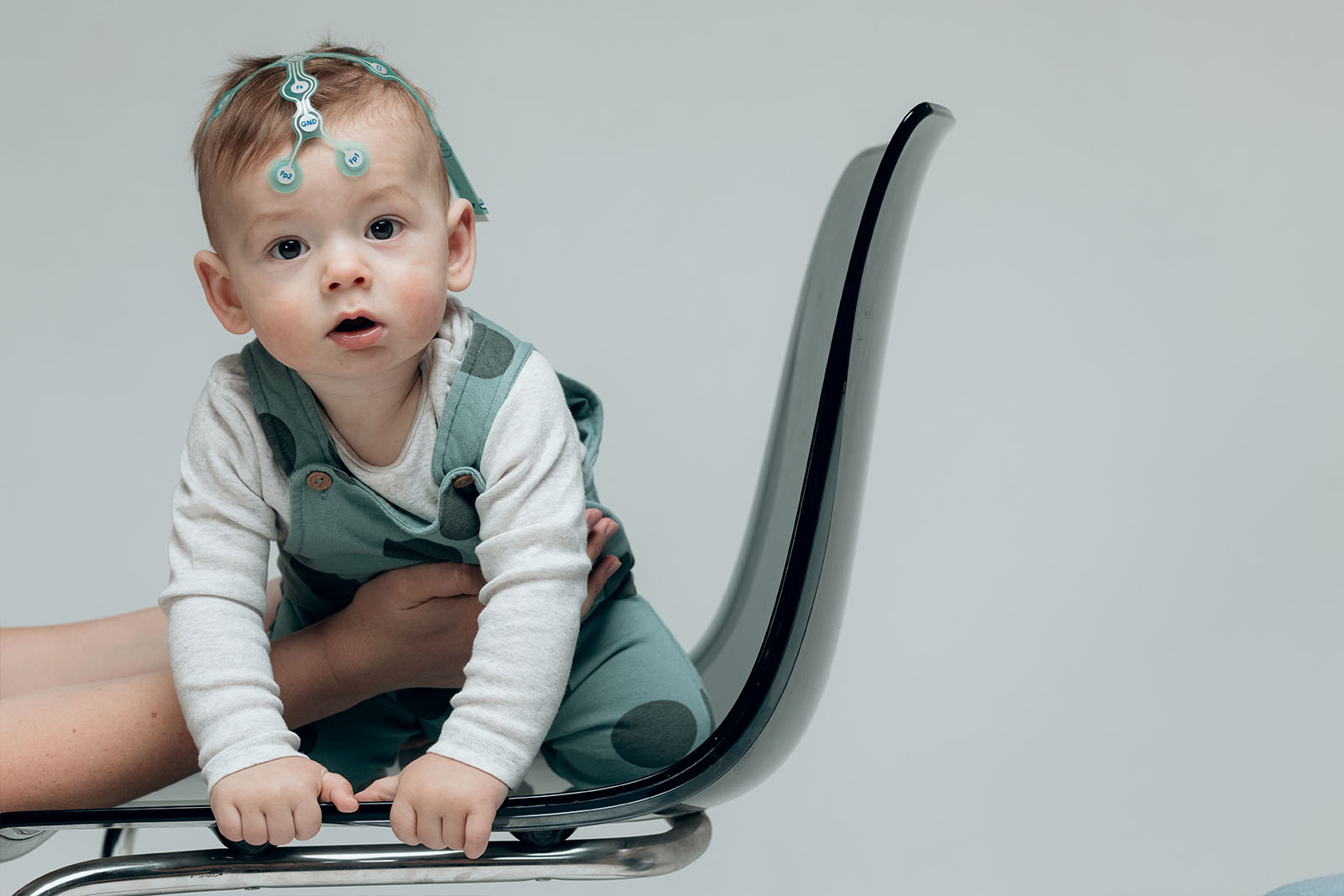

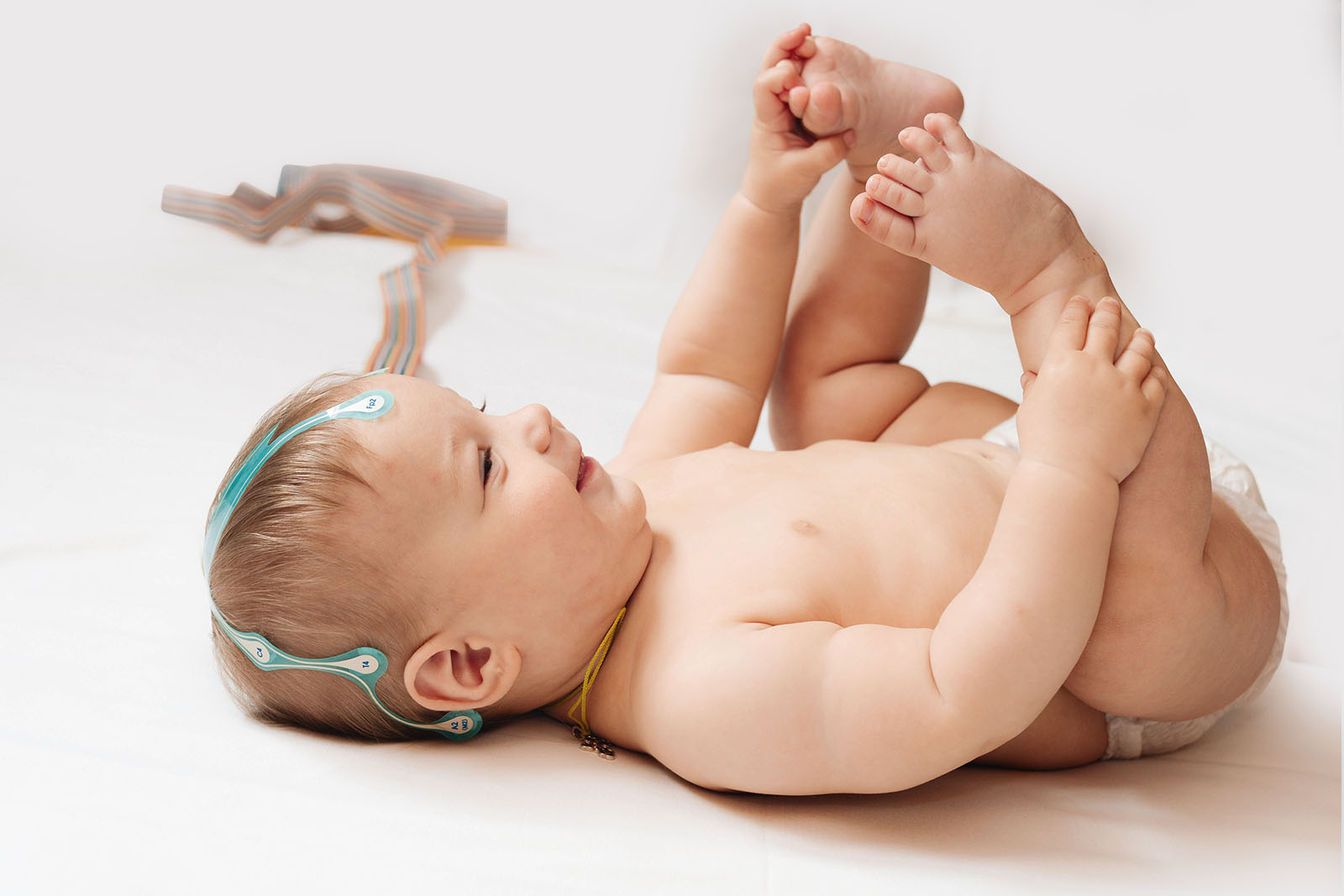

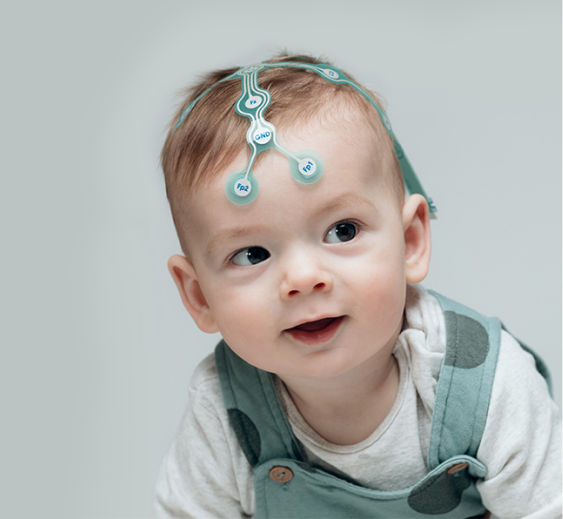

DEC infant

An EEG cap with electrode placement according to IFCN recommendations for neonatal EEG recording.

Fix at head by using of adhesive EEG paste.
