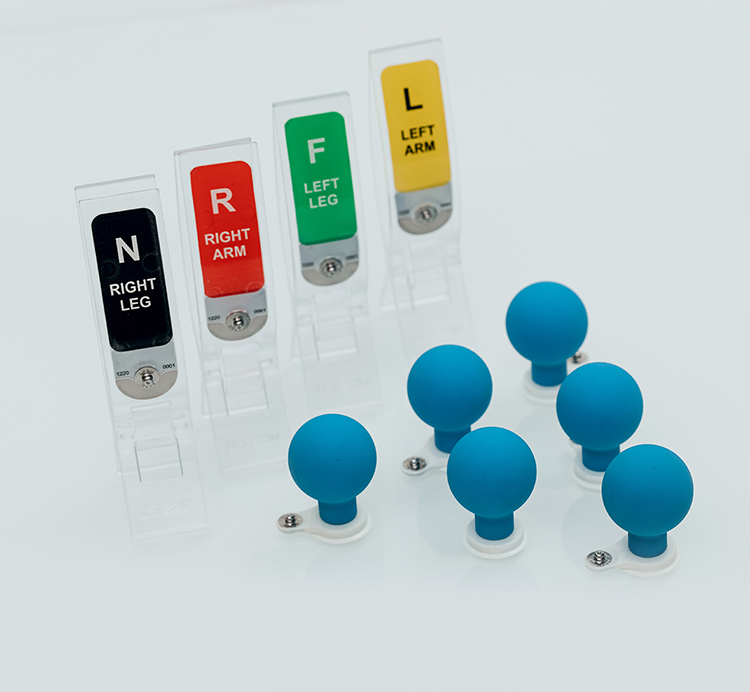

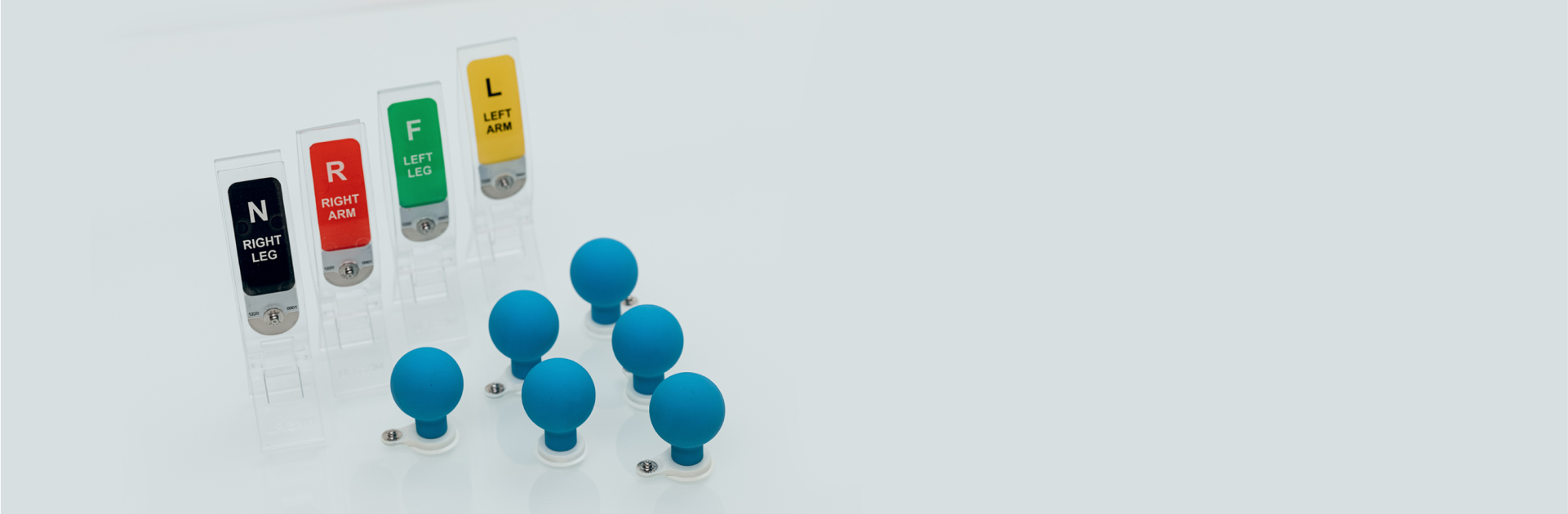

Electrodes are designed for use with modern “grabber” type mounts on patient cables of almost all types of electrocardiographs.

The use of a “button” for a grabber clamp increases the wear resistance of the cables themselves by eliminating mechanical damage as a result of twisting, bending and cyclic bending loads, which traditionally suffer from fasteners with banana plugs that are screwed to the electrode.

Advantages

• Reliable and safe clips made of transparent polycarbonate. Withstand any impact and pressure.
• Shallow polyurethane suction cups for chest electrodes with contact placed on the edge.
• Thick* silver chloride sensor layer on top of the silver layer without the use of other metals for stable recording and low noise.

• No thermal discomfort – feeling of warm electrodes when applied.
• Color-coded with text explanations for the correct position of the clips.
• The delicate but tight fit of the clips does not cause discomfort during a long procedure.
• 2 mm push-button type contact for connecting safety connectors “Push-button” or “Clamp (Grabber)” parallel to the body. Provides minimal leverage to prevent the lead from being torn off by its own weight or pressure from the patient cable. The 4mm banana plug is connected via an adapter.
• Adult and child sizes.

*100 microns instead of 5 microns for electrodes with a galvanic layer on top of the metal
