tES4me

OVERVIEW

tES4me is a personal system for transcranial electrical stimulation intended for physiotherapy and rehabilitation of patients with neurological and psychiatric diseases by means of transcranial electrical stimulation (tES) in accordance with stimulation protocol prescribed by the attending physician.

Weak constant or pulsating electrical stimuli from surface electrodes are delivered to the brain during tES procedure.

It is known that properly selected tES procedure improves the quality of life and corrects such clinical conditions as anxiety, depression, insomnia, addiction and can also be used to create a state similar to chemically induced anesthesia.

tES4me can be used by the patient independently at home after preliminary programming of the personal stimulator by the doctor.

• Programming scenarios up 30 unique procedure, up to 5 stages in the procedure;

• from 2 up to 8 electrodes can be connected to current generator poles in arbitrary order;

• individual tES modes for each stage:

1. tDCS - Transcranial direct current stimulation,

2. toDCS - Transcranial oscillatory direct current stimulation,

3. tACS - Transcranial alternating current stimulation,

4. tPCS - Transcranial pulsed current stimulation,

5. tRNS - Transcranial random noise stimulation,

6. HD-tES - High density transcranial electrical stimulation,

7. Sham stimulation.

• current generation with direct digital synthesis (DDS) up to 4 mА;

• precise current adjustment 1 μА;

• smooth increasing and decline of stimulation current;

• continuous impedance measurement during TES procedure;

• simple device operation – one button solution.

SOFTWARE

tES4me software designed to run on mobile devices and tablets running iOS and Android, as well as computers running Windows 10.

Tes4me Doctor app is designed to set up a personal stimulation course, store information about users, procedures, creating templates for courses, synchronize device & application data etc.

Tes4me app is intended for users to view the history and schedule of procedures, visually quality control of current procedure and receive an assessment of condition after it.

SPECIFICATION

Channels 8
Max current 4 mA
Stimulation current modes Direct current (DC) (default), Alternating current (AC), Alternating current monopolar (ACM)
Shape (for AC and AC monopolar current) Sine, Random, Square, Ramp, Trap, Sin(X)/X, Gauss
Repetition of periods of current waveforms for modes AC, ACM Continuously, BlockPause
DDS generator frequency / bit width 8 kHz / 13 bit
Operating resistance range Impedance – less than 8 kΩ
Checking the electrode connection before stimulation Yes
Lower cutoff frequency at the level of ‑3 dB (for Random) from 10 to 500 Hz (set programmatically)
Upper cutoff frequency at the level of ‑3 dB (for Random) from 50 to 1000 Hz (set programmatically)
Wireless BLE 4.2
Power Built-in battery
Check of battery status Yes. Hardware. Intelligent based on counting charge current / discharge current / time and storage temperature
Battery charge ≤ 2.5 hours from + 5V USB, 500 mA or 2 A
Material of electrode conductive surface Low Corrosion Stainless Steel AISI 316
Surface area of contact of the electrode substance with the skin 380 mm2
Time of continuous work not less than 8 hours
Dimensions (LxWxH) 87 x 56 x 17 ±1 mm
Net weight < 65 g

ACCESSORIES

• Ag/AgCl sintered electrodes MCScap-NTC – 33 pcs.

• Ag/AgCl electrodes MCScap-CS22 – 33 pcs.

• stainless steel electrodes MCScap-CS22SS – 33 pcs.

• set of ear Ag/AgCl sintered electrodes with fixators – 2 pcs.

• textile cap MCScap 10-10, size L (54-60 cm) – 2 pcs.

• textile cap MCScap 10-10, size M (48-54 cm) – 2 pcs.

• textile cap MCScap 10-10, size S (42-48 cm) – 2 pcs.

• elastic textile belt, size L (54-60 cm) – 2 pcs.

• elastic textile belt, size S (42-48 cm) – 2 pcs.

• starter kit (conductive gel, syringe, needles, brushes for cleaning).

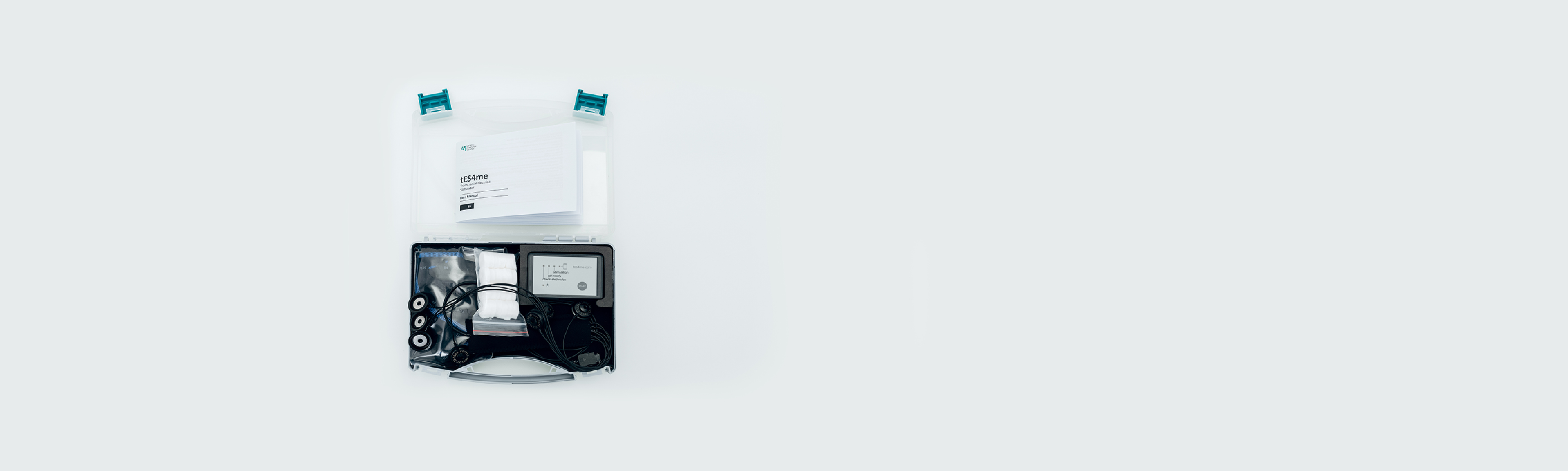

SET INCLUDES

  • tES4me stimulator;
  • Adapter tES4me with 8 electrodes;
  • Textile cap MCScap light;
  • Sponge D22 (50 pcs.);
  • USB cable for tES4me;
  • User manual;
  • tES4me box.
